BAG MAKING MACHINE
BAG MAKING MACHINE VIARA MODEL FUTURA 1400
YEAR 2007
COMPOSED OF:
– TWO-STATION BRAKED REEL HOLDER
– TYPE “BALLERINO” WELDING MACHINE
– AUTOFOCUS PHOTOCELL
– DOUBLE DRIVE ROLLER
– ELECTRONIC TEMPERATURE REGULATOR
– UPPER WELDING BAR
– NEW PROFILE FOR THE CONTROL CAM
– SUMP
– NON-STOP PRODUCTION
– PATENTED SAFETY COVER
– BRUSHLESS MOTOR

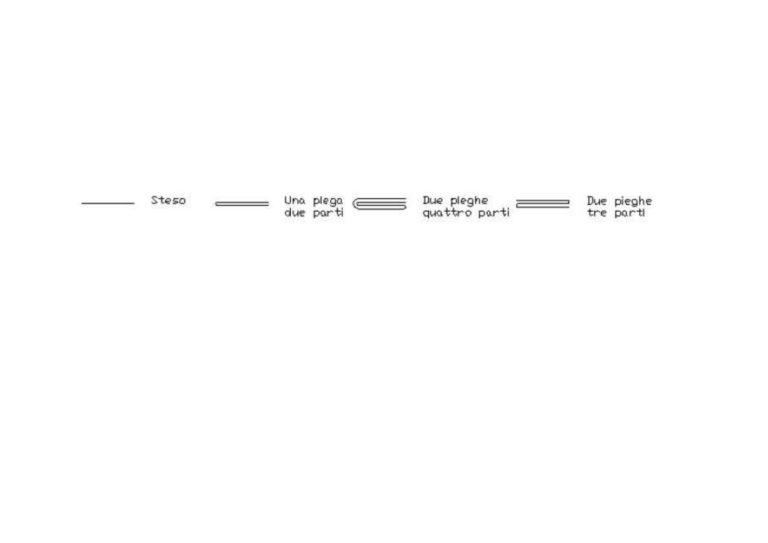

– AUTOMATIC FOLDING CARRIAGE FOR FOLDS IN TWO, THREE OR FOUR PARTS
MINIMUM BAG LENGTH: 100 mm
MAXIMUM BAG LENGTH: 5000 mm
MAXIMUM WELDING WIDTH: 1400 mm
MINIMUM FILM THICKNESS: 2X10 Micron
MAXIMUM FILM THICKNESS: 2X200 Micron
MIN / MAX RATE: 12/130 Bags/Min
MAXIMUM FILM UNWINDING: 110 MT/Min
VOLTAGE: 400 V
AIR CONSUMPTION: 600 Lt/Mn.
AIR PRESSURE: 8 BAR
MAXIMUM ABSORPTION: 6 KW
WEIGHT: 1800 Kg
DIMENSIONS OF THE WELDING MACHINE WITH FOLDER: Width 2540 mm, Length 10000 mm, Height 1440 mm
