ARVOR

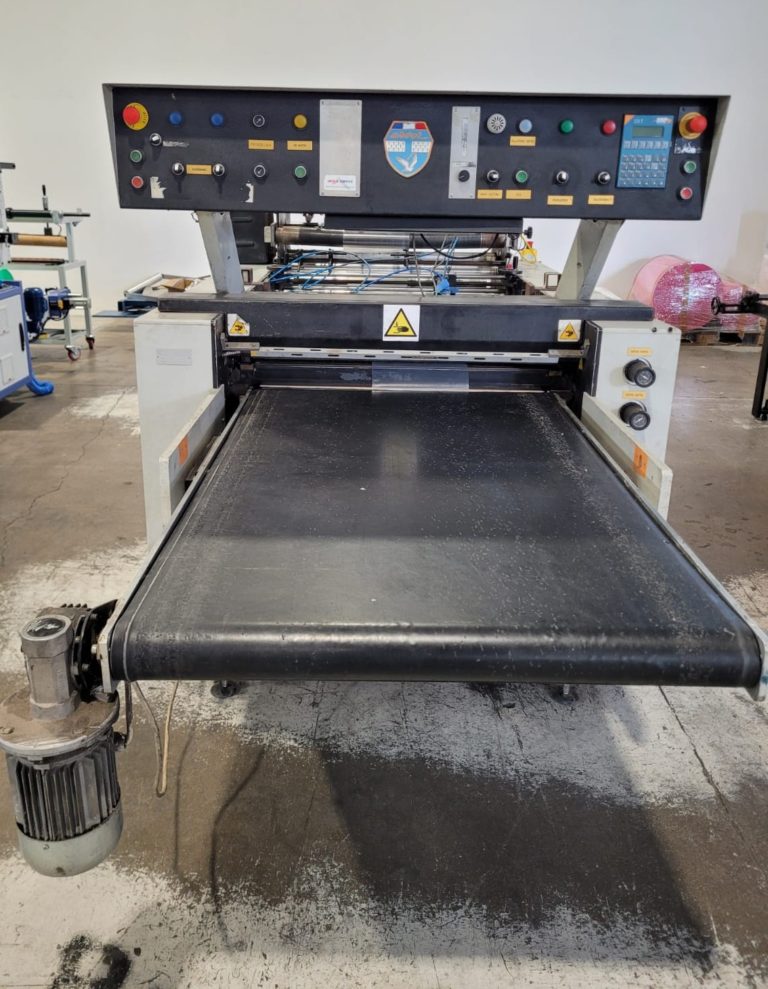

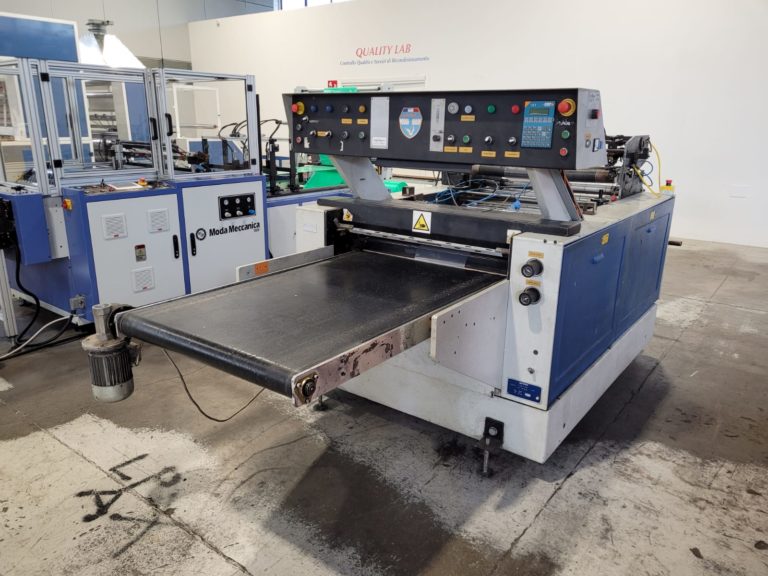

BAG MAKING MACHINE BRAND ARVOR MODEL 870 GL SERVO ELECTRONICS
COMPOSED OF:
– 2 PCS MECHANICAL SHAFTS

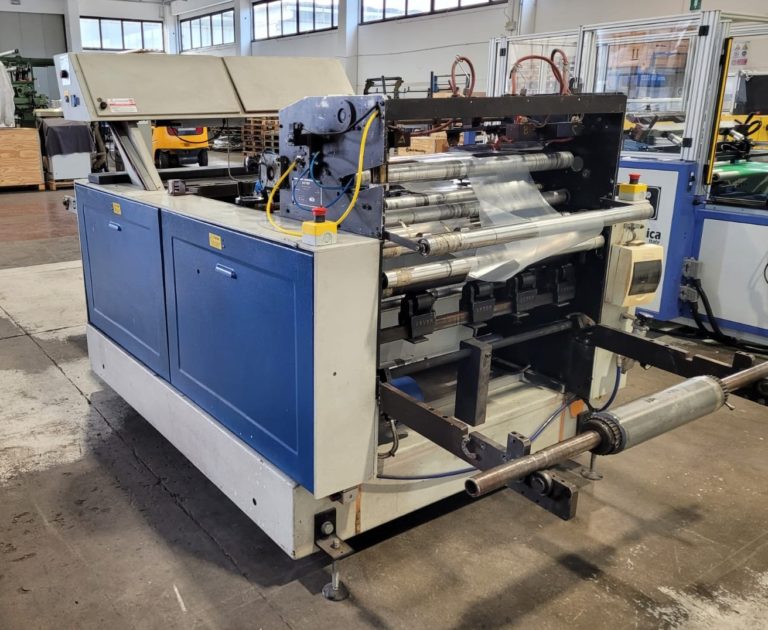

– UNWINDING DEVICE
– WELDING UNIT LIGHT 850 mm
– BAG MAKING MACHINE MOD. 870 GL SERVO ELECTRONIC WITH IBT 637 KIT
– AUTOMATIC OUTPUT TABLE
– ANTISTATIC UNIT COMPLETE WITH 3 ANTISTATIC BARS
– DATALOGIC TYPE PHOTOCELL GROUP
– SAFETY KIT AND MICROSWITCH
– ELECTRIC CONTROL PANEL
– MICROSWITCH FOR THE END OF THE REEL
– WELDING CUTTING UNIT LIGHT 850 mm WITH 3 BLADES COMPLETE WITH ELECTRIC PANEL
MAX BAG WIDTH (mm): 830 mm
MIN BAG WIDTH (mm): 100 mm WITH MULTIPLE TRACKS
MAX BAG LENGTH (mm): 2000 mm
MIN BAG LENGTH (mm): 150 mm
MAX FILM THICKNESS (MICRON): 2X220 (HDPE/LDPE)
MIN FILM THICKNESS (MICRON): 2X12 (HDPE/LDPE)
MAX PRODUCTION SPEED (PIECES/MINUTE): 100
MIN PRODUCTION SPEED (PIECES/MINUTE): 15
TOTAL AIR CONSUMPTION: 100 LITERS/MIN
