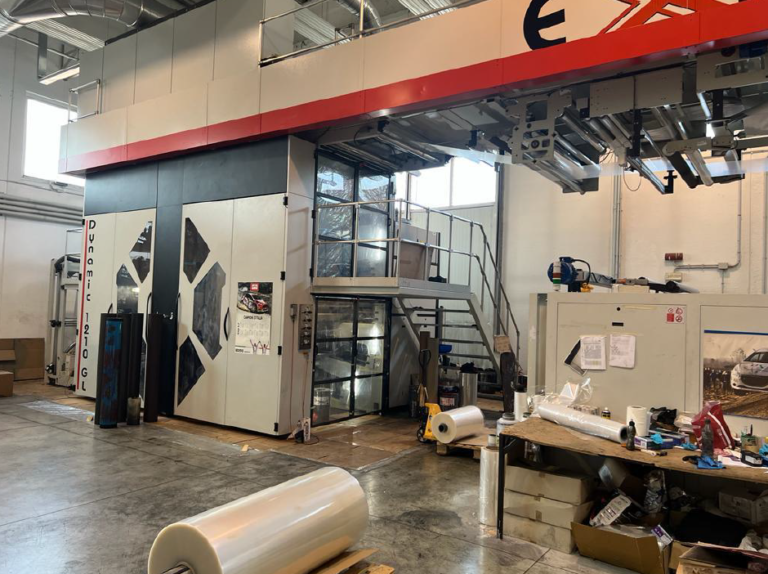

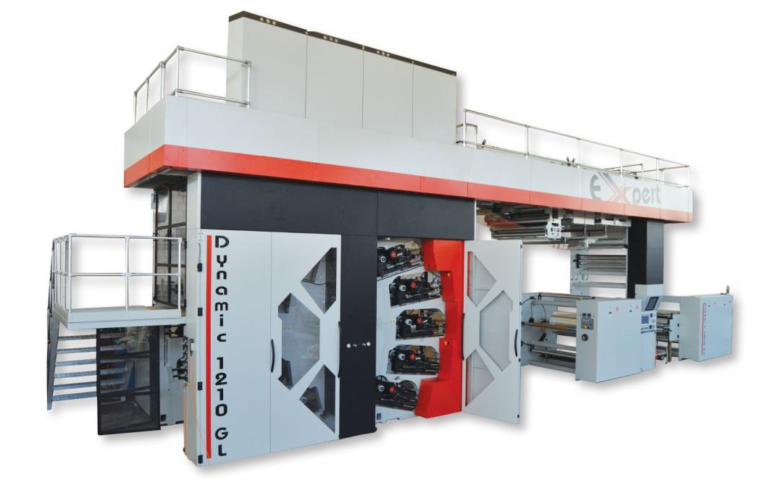

PRINTING MACHINE EXPERT CENTRAL DRUM GEARLESS
TYPE DYNAMIC 1210-GL
MODEL 150
YEAR 2015
10 print units
Print possibility N° 1: (10+0)
Possibility of printing N° 2: (5+5) with external diagonal-
Printing possibility N° 3: (10+10) with diagonal for printing band 45% of the maximum width of the material passage
Speed meters/min 500
Maximum printing width mm 1480
Maximum material passage mm 1550
Maximum plate width mm 1520
Minimum print development 540 mm
Maximum printing development 1250 mm
Clichè used 1.14 mm + double adhesive 0.55 mm
